vacuum lifter for laser feeding max loading 250-1500kgs

Short Description:

Standardized lifters for handling of plate materials with dense, smooth or structured surfaces. The sturdy design, simple operation and high safety concept make the vacuum lifters an ideal partner to simplify and rationalize processes. The lifters are quickly and easily adaptable to multi type workpiece dimensions and offer almost limitless possibilities of use.

This equipment is widely used for laser feeding. The device of our equipment, can choose DC or AC 380V. If you choose to charge the battery, you can use it for about 70 hours per charge. The battery life is more than 4 years. The normal power supply voltage of the equipment is 110V-220V. If you choose 380AC, because the voltage is different in each country or region, you need to know your local voltage when you purchase, we will provide the corresponding transformer according to the voltage in your country region.

Almost everything can be lifted

With custom-made tools we can solve your specific needs. Please contact us for more information.


Product Detail

Product Tags

Characteristic ( wellable marking )

Max.SWL1500KG
● Low pressure warning.
● Adjustable suction cup.
● Remote control.
● CE certification EN13155:2003.
● China Explosion-proof Standard GB3836-2010.
● Designed according to German UVV18 standard.
● Large vacuum filter, vacuum pump, control box incl start / stop, energy saving system with automatic start/stop of vacuum, electronic intelligent vacuum surveillance, on/off switch with integrated power surveillance, adjustable handle,standard with equipped with bracket for quick attachment of lifting or suction cup.
● A single person can thus quickly move up to 1 tonnes, multiplying productivity by a factor of ten.
● It can be produced in different sizes and capacities according to the dimensions of the panels to be lifted.
● It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.

performance index

Serial No. BLA800-8-T Max capacity Horizontal handling 800kg
Overall Dimension 2000X800mmX800mm Power input AC380V
Control mode Manual push and pull rod control absorption Suction and discharge time All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure 85%vacuum degree (about0.85Kgf) Alarm pressure 60%vacuum degree (about0.6Kgf)
Safety factor S>2.0; Horizontal absorption Dead weight of equipment 105kg(approximate)
Power failure Maintaining pressure After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Features

Vacuum elevators01

Suction pad
● Easy replace.
● Rotate pad head.
● Suit various working conditions.
● Protect workpiece surface.

Power control box

Power control box
● Control the vacuum pump
● Displays the vacuum
● Pressure alarm

Vacuum gauge

Vacuum gauge
● Clear display
● Color indicator
● High-precision measurement
● Provide security

Quality Raw Materials

Quality Raw Materials
● Excellent workmanship
● Long life
● High quality

Specification

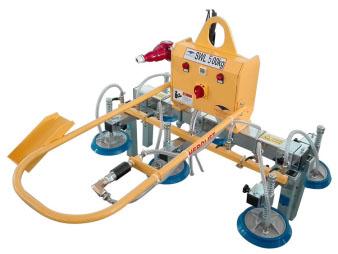

Vacuum gauge1  SWL/KG Type L×W×H mm Own Weight kg
250 BLA250-4-T 2000×800×600 80
500 BLA500-6-T 2000×800×600 95
800 BLA800-8-T 3000×800×600 110
1500 BLA1500-12-T 3000×800×600 140
Powder:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
For optional. DC OR AC Motor drive as your requirements

Detail display

Vacuum gauge2
1 Supporting Feet 9 Vacuum Pump
2 Vacuum Hose 10 Beam
3 Power connecter 11 Main Beam
4 Power light 12 Remove Control Tray
5 Vacuum Gauge 13 Push-Pull Valve
6 Lifting ear 14 Shunt
7 Buzzer 15 Ball Valve
8 Power Switch 16 Suction Pads

Function

Safety tank integrated
Adjustable suction cup
Suitable for occasions with large size changes
Imported oil-free vacuum pump and valve

Efficient, safe, fast and labor-saving
Pressure detection ensure safety
The suction cup position be closed manually
Design conforms to CE standard

Application

Aluminum Boards
Steel Boards
Plastic Boards
Glass Boards

Stone Slabs
Laminated chipboards
Metal processing industry

vacuum lifter01
vacuum lifter
vacuum lifter03
vacuum lifter02

Service cooperation

Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and established a reliable brand for more than 17 years.
