Electric Balancer Lift Assist Mobile Jib Crane

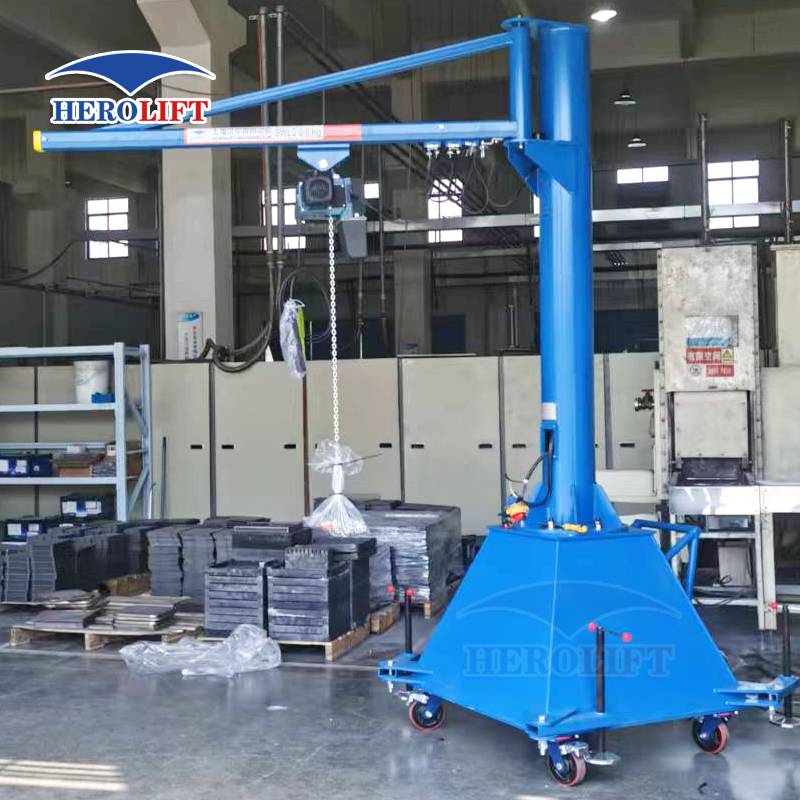

HEROLIFT Mobile Jib Crane (also called mobile cantilever crane) is a lifting machine that use electric chain hoist (or wire rope electric hoist) as lifting mechanism and run in any direction to the desired location. The electric hoist can run on the cantilever, suitable for the occasion that the heavy objects need to be moved. Mobile cantilever crane with flexible mobility, wide adaptability and other characteristics, is an efficient automatic production line on the necessary emergency lifting equipment, with it to ensure that the production line unimpeded. The jib crane widely used in factories and mines, workshops, field, warehouse installation of small equipment, cargo and workpiece handling, and low construction should not be set up driving and other places.
Almost everything can be lifted
With custom-made tools we can solve your specific needs. Please contact us for more information.
Characteristic ( wellable marking )
Characteristic ( wellable marking )
1, Max.SWL2000KG
KBK crane and trolley tracks
Bridge with gimbal bearing.
Remote control
CE certification EN13155:2003
China Explosion-proof Standard GB3836-2010

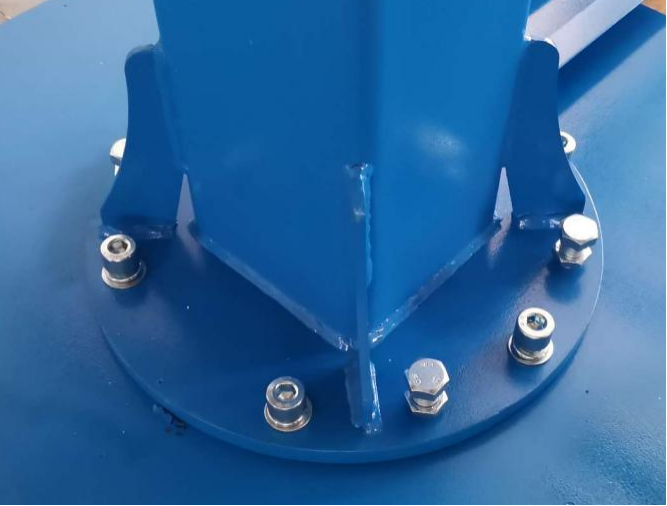

2,The all bolted construction and modular design makes it easy to add sections or to disassemble and relocate.
3,A single person can thus quickly move up to 2 tonnes, multiplying productivity by a factor of ten.
4,It can be produced in different sizes and capacities according to the dimensions of the panels to be lifted.
5,It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.

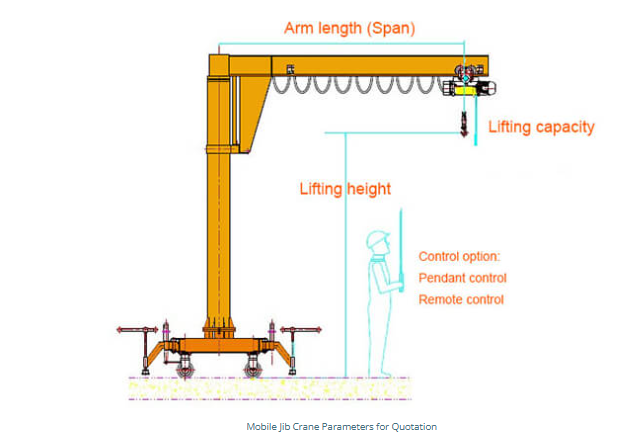

Mobile Jib Crane Parameter
●Mobile Jib Crane Type:MBZ-KBK
●Lifting Capacity: 0.25t / 0.5t / 1t / 2t
●Lifting Height: 1~3m / customized
●Rotation radius: 1~3m / customized
●Angle of rotation: 270° / 360°
●Rotary way: manual / electric
Features
Jib crane
•Custom color
•High space utilization rate
•Suit various working conditions
•High strength and corrosion resistance
Crane Systems and Jib Cranes
•Consistently light weight design
• Saves more than 60 percent of the force
• Stand-alone solution-modular system
• Material optional，Scheme customization

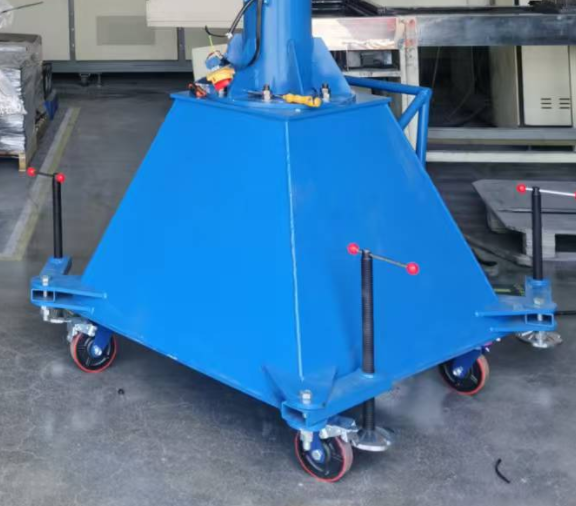

Mobile base:
•Increase mobility, suitable for various tasks
•Universal casters, precise adjustment of position
•Easy movement, reducing operator stress
•Locking mechanism to increase security and stability

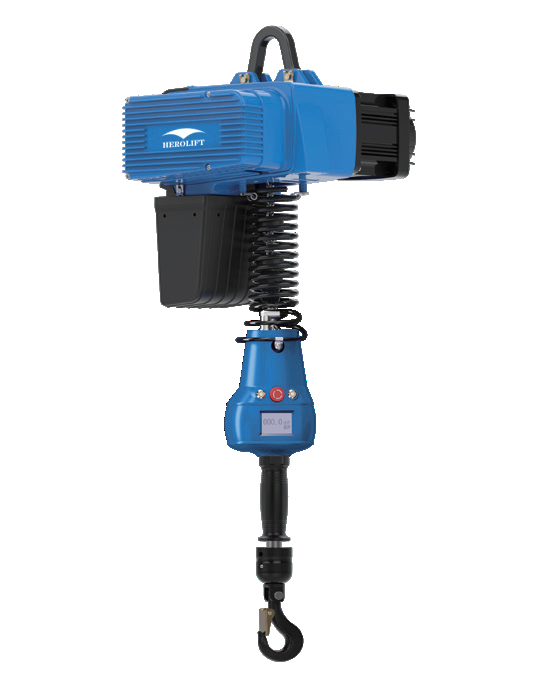

Intelligent lifting device
•Precise positioning
• Automated operation
•Intelligent monitoring
Use of Mobile Jib Cranes
the operator should strictly abide by the equipment operating procedures, master the performance of lifting equipment, is strictly prohibited overload.
The swing crane must follow the basic principle of “running without lifting, lifting and not running”.
It is not permissible to use the terminal baffle as a normal stop method.
must be opened before lifting four support devices supported on the ground to ensure safety
lifting heavy objects, should try to avoid the electric hoist for a number of jog operation.
lifting the chain of heavy objects or wire rope must have sufficient strength, solid and reliable, lifting the weight of the acute angle should be padded, set in the hook rope must be placed in the center of the hook to prevent slippage.
lifting and moving of heavy objects should be carried out in the vertical case, prohibit the cable lift, nor allow the lifting frame to drag or impact.
Lifting equipment failure occurred in the event of an accident, should immediately cut off the power.
When lifting heavy objects, the lower end of the crane is forbidden by pedestrians and pedestrians.
work after the break, should not be heavy objects hanging in the air, and the timely closure of power.
Maintenance of Mobile Jib Cranes
Every six months, rotating parts need to add lubricating oil once.
according to the use of the situation, the regular brush to the rotating parts of the beam (walking track surface) on the accumulation.
Design conforms to CE standard
Function
Safety tank integrated；
Suitable for occasions with large size changes
Efficient, safe, fast and labor-saving
Pressure detection ensure safety
Design conforms to CE standard
Application
This equipment is widely used for Logistics, warehousing, chemicals, food and other industries.
