How Heavy-Duty Vacuum Lifters Prevent Plate Deformation and Ensure Safety in Metal and Stone FabricationIn high-capacity B2B manufacturing—such as metal fabrication shops, CNC laser cutting centers, and stone processing plants—handling heavy sheets and brittle slabs presents a double engineering challenge: ensuring absolute operator safety while protecting raw materials from permanent structural damage.
When lifting large carbon steel plates, aluminum sheets, or engineered stone slabs, two hidden operational risks frequently emerge on the factory floor: permanent plate deformation due to calculated overhang violations, and sudden load drops during unexpected power failures.
To eliminate these bottlenecks, upgrading to engineered heavy-duty vacuum lifters built on rigorous international compliance standards has become a global industry mandate.
The Engineering Threat of Overhang and Permanent Sheet Sagging
One of the most critical, yet frequently overlooked, technical factors in industrial material handling is the overhang limit (L). Overhang refers to the distance that a metal sheet or stone slab extends beyond the outermost vacuum suction pads.
If the material format exceeds the calculated overhang thresholds for its specific thickness, the sheet will sag under its own weight, leading to irreversible permanent deformation. To combat this, precision engineering must dictate system configuration:

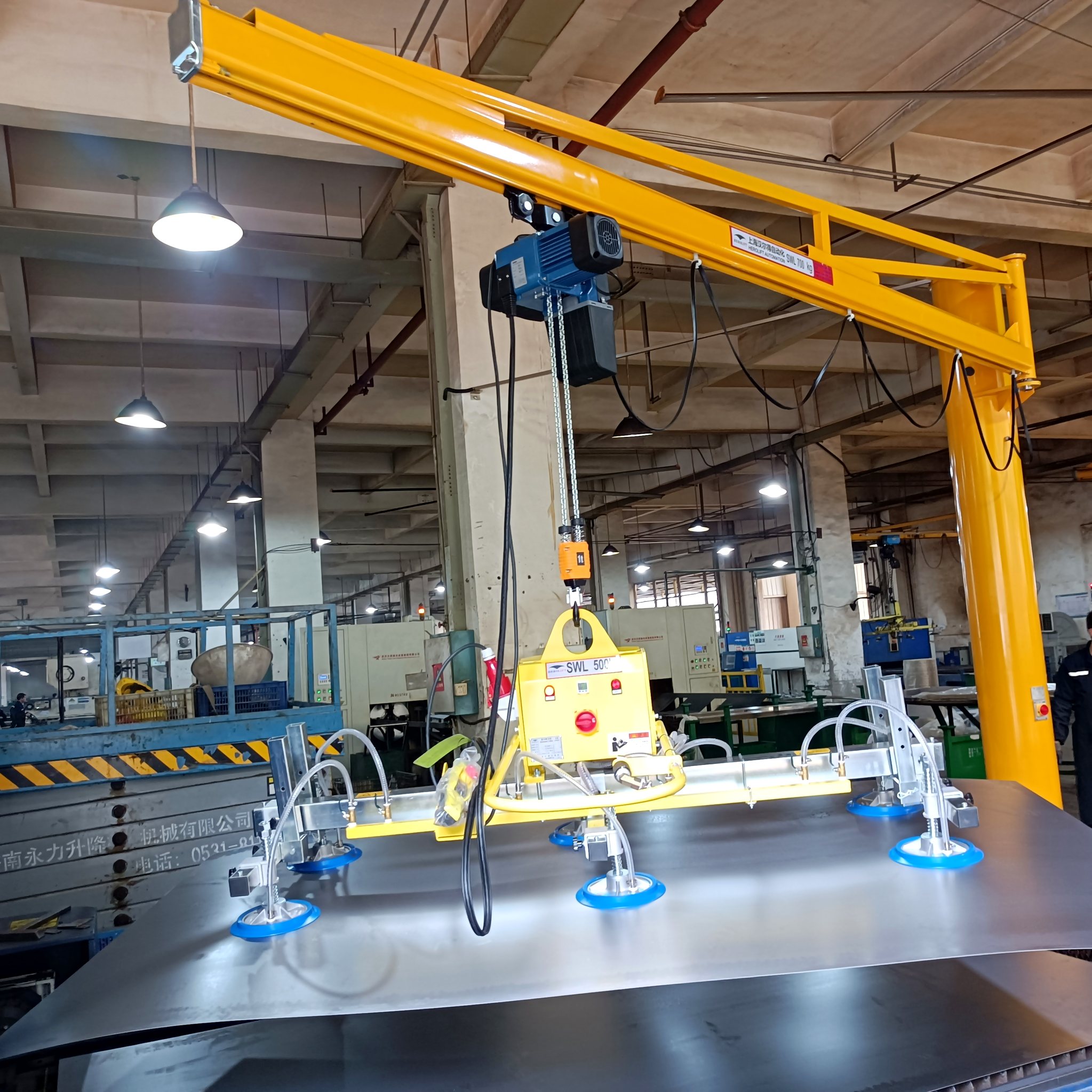

- Standard Multi-Point Grip (BLA Series): For standard formats (e.g., 3000 mm × 1500 mm steel sheets), a 6-pad or 8-pad configuration like the BLA400-6-T or BLA800-8-T restricts the maximum allowable overhang to 1016 mm for a minimum plate thickness of 3 mm.
- Telescopic Span Adjustment (BLC Series): For long-span materials (up to 6.0 m in length), heavy-duty telescopic systems like the BLC2500-12-T or BLC3000-10-T utilize dynamic cross-beams and main beams extending up to 5000 mm [source: 0.1.59]. By distributing up to 10 or 12 specialized Ø360mm NBR suction pads, the system securely supports heavy plates (up to 3000 kg) while keeping the structural sag safely within the 1194 mm overhang tolerance line [source: 0.1.61].
Technical Specifications: Shanghai Herolift Heavy-Duty Range
To provide a clear matrix for B2B procurement teams matching equipment to laser cutters (such as Trumpf, Bystronic, HSG, or Amada), the technical boundaries of standard systems are detailed below:
| Model Number | Rated Load Capacity | Pad Configuration | Vacuum Pump Type & Capacity | Steel Structure & Beam Dimensions |
|---|---|---|---|---|
| BLA400-6-T [source: 0.1.43] | 400 kg [source: 0.1.43] | 6 pcs × Ø230 mm [source: 0.1.43] | Air-Cooled Rotary-Vane (4 m³/h) [source: 0.1.44] | Main Beam: 2.0 m | Cross Beams: 0.8 m [source: 0.1.43] |
| BLA800-8-T [source: 0.1.86] | 800 kg [source: 0.1.86] | 8 pcs × Ø230 mm [source: 0.1.85] | Air-Cooled Rotary-Vane (8 m³/h) [source: 0.1.87] | Main Beam: 2.0 m | Cross Beams: 0.8 m [source: 0.1.85] |
| BLC1000-8-230 [source: 0.1.57] | 1000 kg (Stone/Granite) [source: 0.1.57] | 8 pcs (Sponge-Seal Cups) [source: 0.1.57] | Heavy-Duty VT4.8 [source: 0.1.57] | Fixed Stone Support Frame: 5.0 m × 0.8 m [source: 0.1.57] |
| BLC2500-12-T [source: 0.1.102] | 2500 kg [source: 0.1.102] | 12 pcs × Ø300 mm [source: 0.1.102] | Imported German Becker (25 m³/h) [source: 0.1.103] | Telescopic Frame: 5.0 m × 1.0 m [source: 0.1.101] |
| BLC3000-10-T [source: 0.1.113] | 3000 kg [source: 0.1.113] | 10 pcs × Ø360 mm [source: 0.1.112] | Imported German Becker (25 m³/h) [source: 0.1.114] | Telescopic Frame: 5.0 m × 0.8 m [source: 0.1.112] |
Hardcore Safety Redundancy: The 30-Minute Power Failure Redline
In the international heavy-lifting sector, compliance with EU CE standard EN13155:2003, American ASME B30-20-2006, and German UVV18 is non-negotiable [source: 0.1.44]. While CE guidelines mandate a minimum 10-minute pressure-holding buffer during sudden plant power loss, Shanghai Herolift designs systems that triple this safety margin [source: 0.1.35].
The Integrated Vacuum Reservoir Frame
Herolift structures do not rely on fragile external tanks [source: 0.1.45]. Instead, the heavy high-grade steel main beam undergoes advanced sealing-plate welding and rigorous post-weld air-tightness testing to directly serve as an integrated vacuum reservoir (Vacuum Tank) [source: 0.1.35].
Dual-Layer Fail-Safe Components
Coupled with premium Italian-imported G1/2″ vacuum non-return check valves, the integrated main beam reservoir locks vacuum energy instantly if power drops [source: 0.1.36]. This robust structural design holds a loaded workpiece securely suspended in mid-air for more than 20 to 30 minutes without dropping, granting operators substantial time to manage emergency floor evacuations or implement auxiliary mechanical lowering sequences [source: 0.1.35]. Real-time system monitoring is backed by intelligent Japanese Panasonic DP-100 vacuum pressure switches that activate an audible buzzer and red strobe light chain the microsecond system vacuum drops beneath the safe 60% threshold [source: 0.1.35].
Advanced Ergonomic and Energy-Saving Adjustments
To ensure continuous 8-hour shift reliability across dynamic B2B manufacturing layouts, Herolift structures embed three critical field-proven mechanical advantages [source: 0.1.47]:
- Intermittent Smart Pump Control: Systems feature automatic energy-saving thresholds [source: 0.1.47]. Once the target vacuum reaches peak operating parameters (85% degree / ~0.85 Kgf), the rotary-vane pump automatically enters standby [source: 0.1.43]. It restarts only when vacuum decays beneath set parameters, drastically extending the pump’s lifecycle and lowering shop floor power draws [source: 0.1.47].
- Independent Pad Isolation Valves: Every single NBR pad arm is outfitted with an individual manual 2/2-way ball valve [source: 0.1.35]. When a fabrication batch switches from a full 6.0 m master plate to shorter custom blanks, the operator can selectively isolate unneeded pads, maintaining a tight, leak-free circuit across smaller surface areas [source: 0.1.35].
- Mechanical Spring Dampers: Pad stems are fitted with heavy spring cushions [source: 0.1.35]. When docking with flamed, honed, or slightly warped stone and metal sheets, the spring dampers equalize pad contact force across uneven topographies, guaranteeing a reliable multi-point seal [source: 0.1.35].
Conclusion: Build Your Workstations on Ironclad Trust
Protecting materials from irreversible structural bending and safeguarding operators against heavy component drops requires heavy-duty vacuum handling hardware built on zero compromise. With massive custom installations deployed at industrial landmarks like Shanghai Baosteel, Herolift balances high-efficiency CNC feeding cycles with strict regulatory peace of mind [source: 0.1.49].
Ready to calculate your factory floor overhang safety requirements? Browse our technical documentation at www.hero-lift.com or request a direct layout appraisal from Ms. Melissa Men and our heavy engineering department at
